FBSA212A/QFC軸承
SKF FBSA212A/QFC軸承是鼎力晟業長期代理的產品，鼎力晟業與SKF公司具有長期的FBSA212A/QFC軸承采購計劃，可以為國內用戶提供足夠數量的SKF FBSA212A/QFC軸承，讓您的工廠無憂運轉。
型號：FBSA212A/QFC
品牌：SKF
內徑：60
外徑：145
厚度：114
系列：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
【
手機版 FBSA212A/QFC軸承
點擊量
更新日期：2021/12/28
】
電話：020-36026999 傳真：020-36705678 服務熱線：18924187999 郵箱：sales@gzbearing.cn

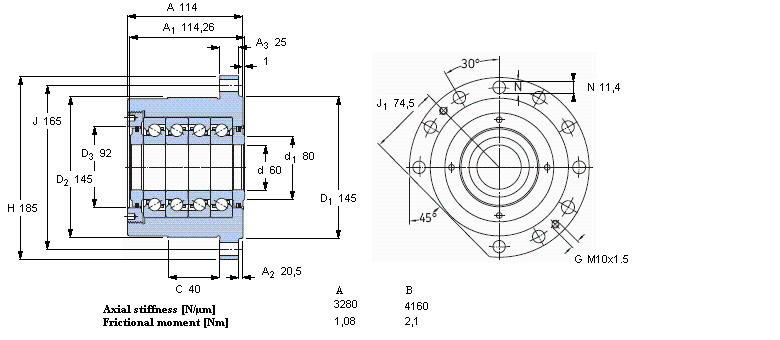

SKF FBSA212A/QFC尺寸圖紙
FBSA212A/QFC軸承基本參數
| 角接觸推力球軸承 for screw drives, cartridge units with flanged housing | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 預壓 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 60 | 145 | 114 | 113,285 | 432 | 16 | 2500 | 1250 | 12,3 | FBSA 212 A/ QFC | BSQU 260/1 TFT | |
